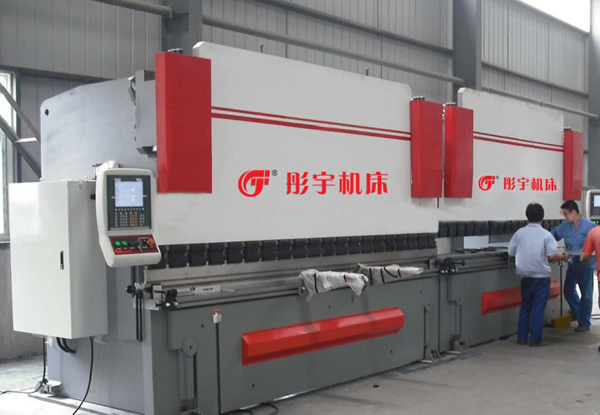

雙機聯(lián)動液壓板料折彎機
- 更新：2016-06-15 12:05:53???點擊：
詳細信息/ INFORMATION
雙機聯(lián)動折彎機性能參數(shù)
|
規(guī)格型號 |
2-PBB-300/6200 2-PBB-300/7000 |
2-PBB-400/6200 2-PBB-400/7000 |
2-PBB-500/6200 2-PBB-500/7000 2-PBB-500/8200 |
2-PBB-630/6200 2-PBB-630/7000 2-PBB-630/8200 |
2-PBB-800/6200 2-PBB-800/7000 2-PBB-800/8200 |
2-PBB-1000/6200 2-PBB-1000/7000 2-PBB-1000/8200 |
2-PBB-1200/6200 2-PBB-1200/7000 2-PBB-1200/8200 |
|
公稱壓力 (KN) |
2×3000 |
2×4000 |
2×5000 |
2×6300 |
2×8000 |
2×10000 |
2×12000 |
|
工作臺長度(mm) |
2×6200 2×7000 |
2×6200 2×7000 |
2×6200 2×7000 2×8000 |
2×6200 2×7000 2×8000 |
2×6200 2×7000 2×8000 |
2×6200 2×7000 2×8000 |
2×6200 2×7000 2×8000 |
|
立柱間距(mm) |
5100 5600 |
5100 5600 |
5100 5600 6500 |
5100 5600 6500 |
5100 5600 6500 |
5100 5600 6500 |
5100 5600 6500 |
|
喉口深度(mm) |
400 |
400 |
500 |
500 |
600 |
650 |
700 |
|
滑塊行程(mm) |
250 |
250 |
300 |
300 |
400 |
400 |
400 |
|
裝模高度 (mm) |
900 |
900 |
1000 |
1100 |
1250 |
1250 |
1250 |
|
滑塊速度 (mm/s) |
100 9 80 |
100 9 80 |
125 8 100 90 8 75 |
125 9 100 100 9 80 |
120 9 100 |
120 9 100 |
120 9 100 |
|
電機功率(KW) |
2×22 |
2×30 |
2×37 |
2×45 |
2×75 |
2×90 |
2×110 |
|
外形尺寸 L×W×H (mm) |
13000×2400×4450 14600×2400×4800 |
13000×2500×4950 14600×2500×5510 |
13000×2500×4450 14600×2500×5600 17000×2500×5900 |
13000×3150×5800 14600×3150×6300 17000×2500×5900 |
13000×3500×6000 14600×3700×6300 17000×3700×6500 |
13000×5000×6000 14600×3700×6300 17000×3700×6500 |
13000×3900×6300 14600×3900×6500 17000×3900×6750 |
